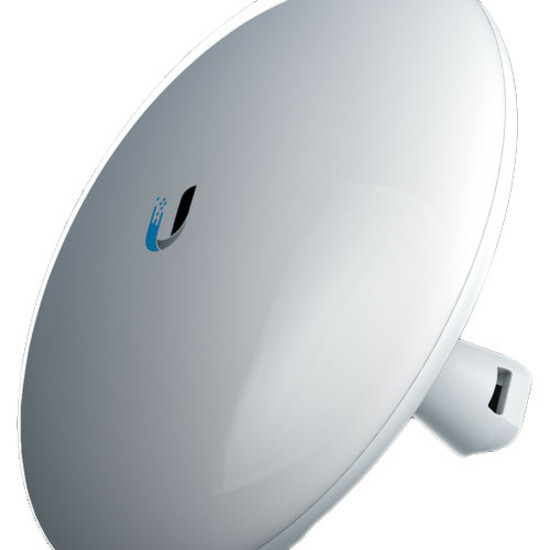

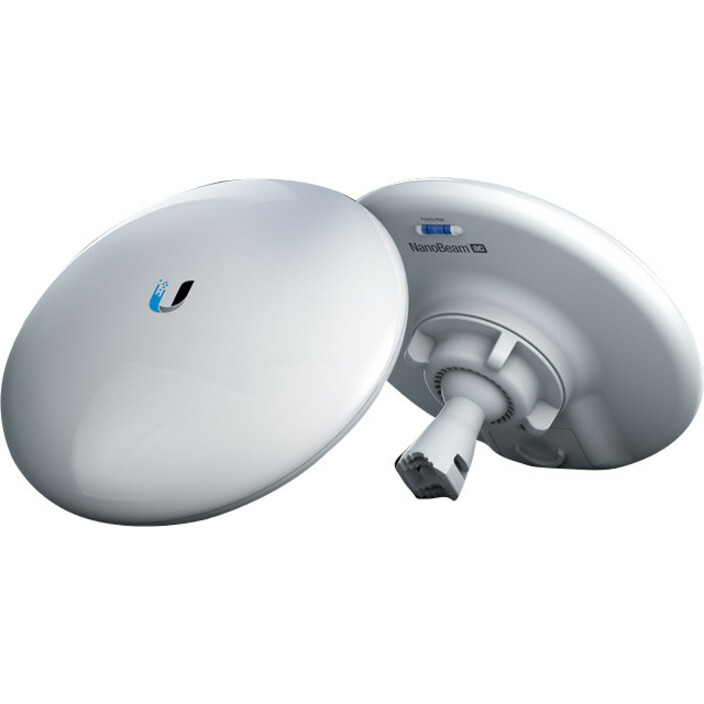

Ubiquiti NanoBeam AC Gen2 NBE-5AC-GEN2 IEEE 802.11ac 450 Mbit/s Wireless Bridge - 5 GHz - 9.3 Mile Maximum Outdoor Range - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable, Pole-mountable
Description
Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna "Beam" Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti's airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

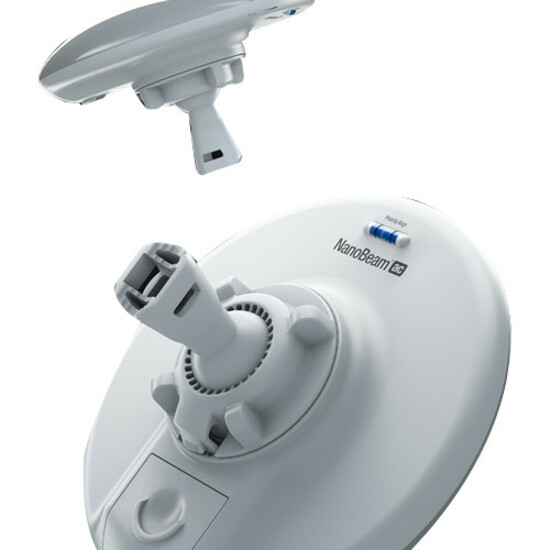

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifications
43222631
Ubiquiti
Ubiquiti
Wireless Bridges
China
7.4"
Yes
Ethernet
Wall Mountable
5 GHz
No
4.9"
1 Year
No
1
9.3 Mile
No
Yes
No
Wireless Bridge
No
No
1.17 lb
7.4"
IEEE 802.11ac
450 Mbit/s
