Ubiquiti LiteBeam AC Gen2 LBE-5AC-LR Wireless Access Point - 1 x Network (RJ-45) - Gigabit Ethernet - Pole-mountable
Description
Improved Noise Immunity
The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Innovative Design

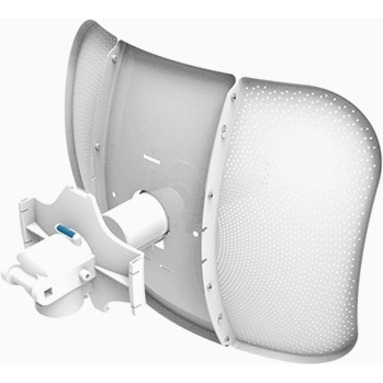

Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

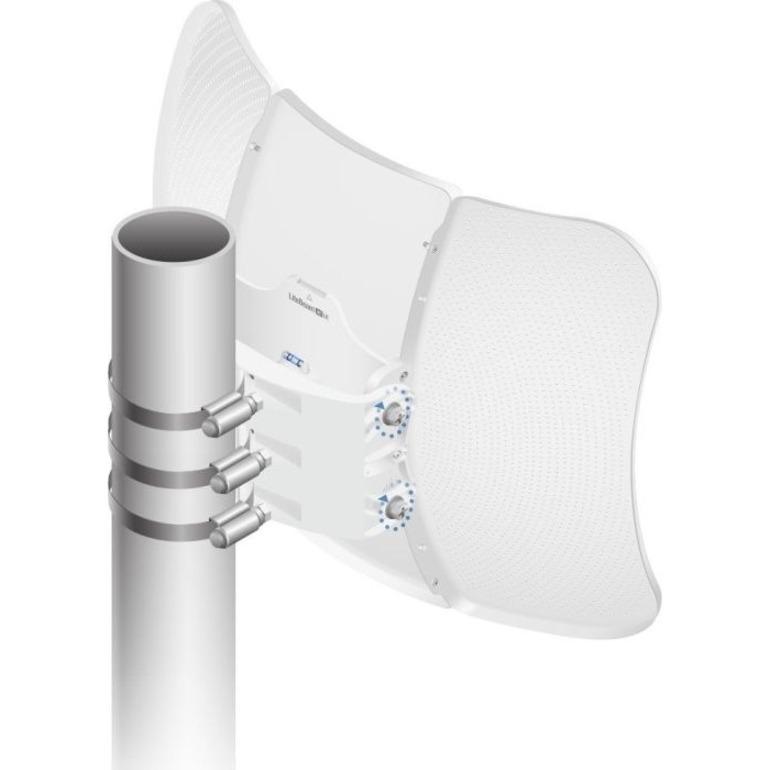

Featuring high performance and innovative mechanical design, the LiteBeam 5AC Gen 2 is versatile and cost-effective to deploy.
Software
airOS v8 is the revolutionary operating system for Ubiquiti airMAX ac products.
Powerful Wireless Features
- Access Point PtMP airMAX Mixed Mode
- airMAX ac Protocol Support
- Long-Range Point-to-Point (PtP) Link Mode
- Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
- Automatic Channel Selection
- Transmit Power Control:Automatic/Manual
- Automatic Distance Selection (ACK Timing)
- Strongest WPA2 Security
- airMagic Channel Selection Too
- Redesigned User Interface
- Dynamic Configuration Changes
- Instant Input Validation
- HTML5 Technology
- Optimization for Mobile Devices
- Detailed Device Statistic
- Comprehensive Array of Diagnostic Tools, including RF Diagnostics and airView Spectrum Analyzer
The LiteBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Accessing airOS via Wi-Fi
The UNMS app provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UNMS allows you to set up, configure, and manage the LiteBeam 5AC Gen 2. It offers the following options once you're connected or logged in to the device:
Status Check link status information or the basic configuration settings of the LiteBeam 5AC Gen 2.
Configuration Change or update the existing configuration of the LiteBeam 5AC Gen 2.
Tools Access tools for initial installation and configuration of the LiteBeam 5AC Gen 2.
Actions Back up or update the configuration, upload new firmware, reboot the device, reset the device to factory defaults, access the airOS UI in the web browser, or disconnect from the LiteBeam 5AC Gen 2.
Specifications
UNSPSC Code
43222631
Brand
Ubiquiti
Brand Name
Ubiquiti
Category
Wireless Access Points
Depth
15.2"
Ethernet Technology
Gigabit Ethernet
Form Factor
Pole-mountable
Height
10.2"
Limited Warranty
1 Year
Number of Network (RJ-45) Ports
1
PoE PD Port
Yes
Product Type
Wireless Access Point
Weight (approximate)
3 lb
Width
20.2"
