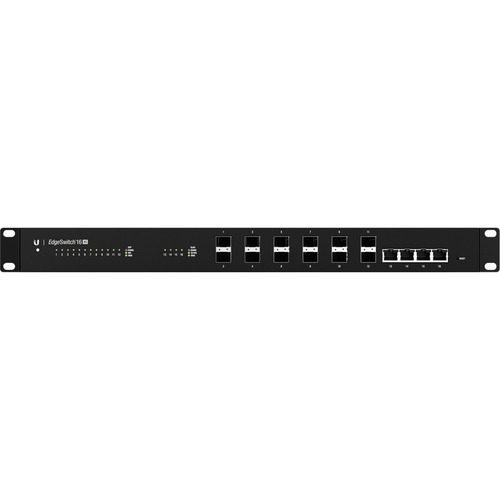

Ubiquiti 10G 16-Port Managed Aggregation Switch - 4 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - 1U High - Rack-mountable, Standalone - 1 Year Limited Warranty
Description
Build and expand your network with Ubiquiti Networks EdgeSwitch XG, part of the EdgeMAX line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services togrowing networks.
The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.
10G High-Capacity Links
The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:
- MSTP/RSTP/STP
- VLAN, Private VLAN, Voice VLAN
- Link Aggregation
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
- DiffServ, CoS
- Static Routing, Policy-Based Routing
- DHCP Server Functionality
Specifications
UNSPSC Code
43222612
Brand
Ubiquiti
Brand Name
Ubiquiti
Category
Managed Switches
Compatible Rack Unit
1U
Country of Origin
China
Depth
8.7"
Environmentally Friendly
Yes
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
SFP+
Form Factor
Rack-mountable
Height
1.7"
Layer Supported
3
Limited Warranty
1 Year
Manageable
Yes
Media Type Supported
Twisted Pair
Modular
Yes
Network Technology
10GBase-T
Number of SFP+ Slots
12
Port/Expansion Slot Details
12 x 10 Gigabit Ethernet Expansion Slot
Power Source
Power supply
Product Type
Ethernet Switch
Redundant Power Supply Supported
Yes
Shared SFP Slot
No
Stack Port
No
Total Number of Expansion Slots
12.0
Total Number of Network Ports
4
Uplink Port
No
Weight (approximate)
5.78 lb
Width
17.4"
