Tripp Lite by Eaton SmartOnline SUT Series 3-Phase 208/120V 220/127V 40kVA 40kW On-Line Double-Conversion UPS, Tower, Extended Run, SNMP Option - 3.70 Minute Full Load - 10.20 Minute Half Load - 40 kVA / 40 kW - SNMP ManageableHardwired - Input Voltage: 1
Description
The Voltage and Frequency Independent (VFI) design allows continuous operation at either 50 or 60 Hz. Zero transfer time from online to battery mode ensures no disruption to attached equipment loads. Offering an efficiency of 94% during normal operation and 98% in economy mode, the SUT40K reduces energy losses for cost-saving operation. Automatic bypass keeps connected equipment powered, even during overloads and many potential UPS fault conditions.
IGBT inverter technology produces output power with less than 2% total harmonic distortion (THDi) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

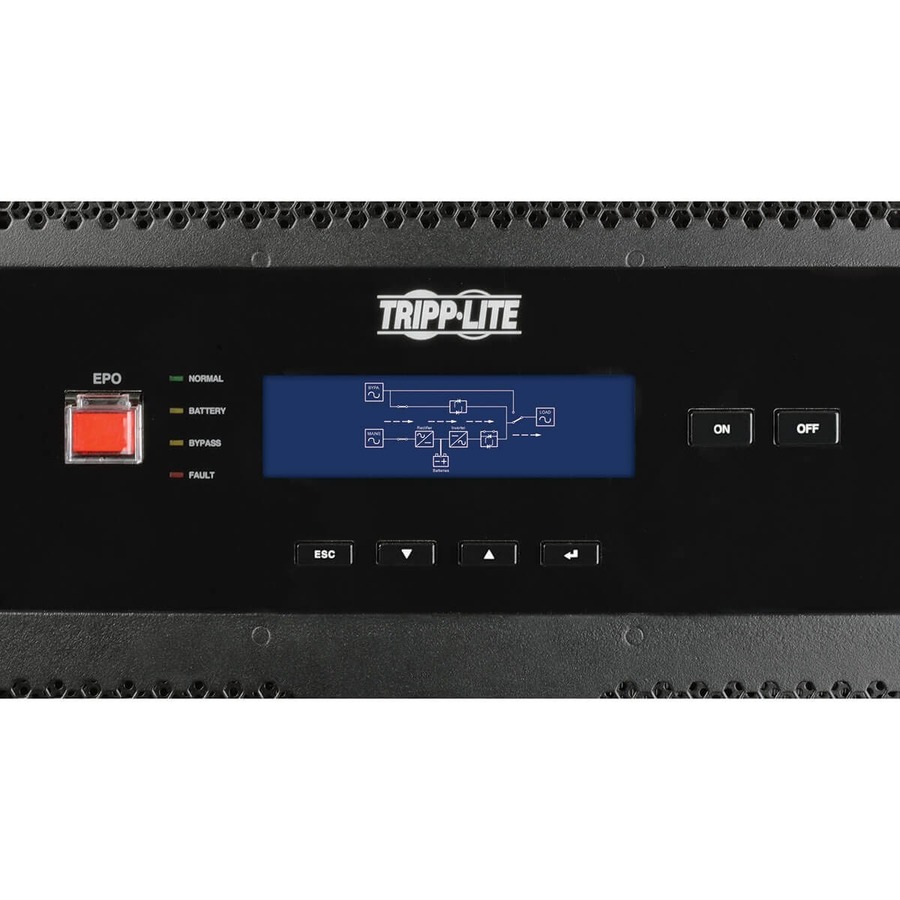

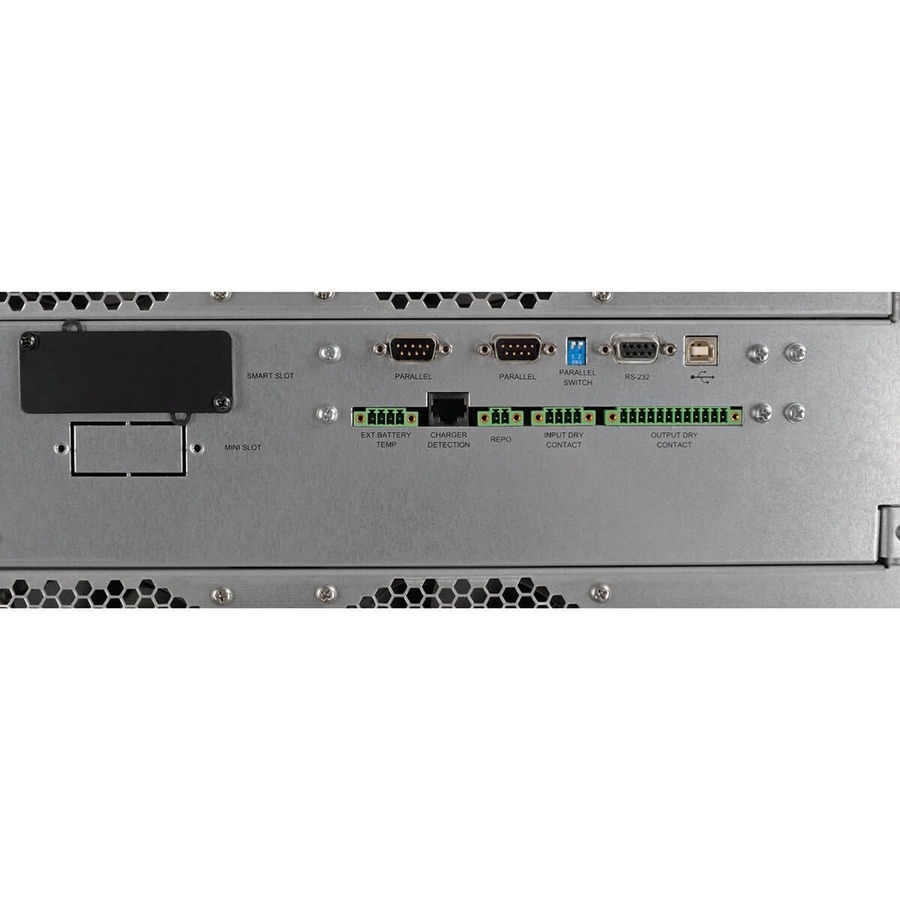

Managing the SUT40K is simplified through the multi-language LCD interface, which displays critical operating conditions and diagnostic data, such as battery and load status. Four LEDs indicate AC, bypass, battery and fault modes. A built-in card slot supports optional remote management cards, such as WEBCARDLX, for comprehensive monitoring and control over a network.
Specifications
UNSPSC Code
39121011
Application/usage
Network
Backup/Run Time (Full Load)
3.70 Minute
Backup/Run Time (Half Load)
10.20 Minute
Brand
Tripp Lite by Eaton
Brand Name
Tripp Lite by Eaton
Country of Origin
China
Depth
31.5"
Environmentally Friendly
Yes
Height
69.3"
Input Voltage
120 V AC
Input Voltage Range
120 V AC - 220 V AC
Limited Warranty
1 Year
Load Capacity (VA)
40 kVA
Manufacturer
Tripp Lite by Eaton
Network Management
SNMP Manageable
Output Voltage
120 V AC
Phase
Three Phase
Plug/Connector Type
Hardwired
Product Family
SmartOnline SUT
Product Line
SmartOnline
Product Series
SUT
Product Type
Double Conversion Online UPS
Receptacle Type
Hardwired
Waveform Type
Pure Sine Wave
Width
20.5"
