Tripp Lite by Eaton

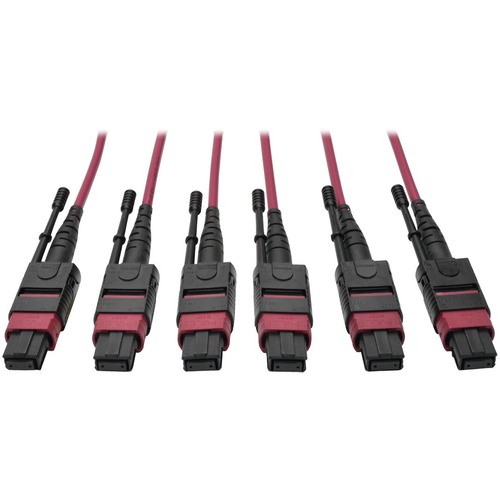

Tripp Lite by Eaton MTP/MPO Multimode Base-8 Trunk Cable, 24-Strand, 40GB/100GB, 40/100GBASE-SR4, OM4 Plenum-Rated (3xF/3xF), Push/Pull Tab, Magenta, 45 m (147 ft.) - Fiber Optic for Network Device - 12.50 GB/s - 147.64 ft - 3 x MTP/MPO Female Network - 3

Category Ethernet Cables
7115270
Tripp Lite by Eaton

Tripp Lite by Eaton MTP/MPO Multimode Base-8 Trunk Cable, 24-Strand, 40GB/100GB, 40/100GBASE-SR4, OM4 Plenum-Rated (3xF/3xF), Push/Pull Tab, Magenta, 45 m (147 ft.) - Fiber Optic for Network Device - 12.50 GB/s - 147.64 ft - 3 x MTP/MPO Female Network - 3

Item Code: 7115270
Category Ethernet Cables
Manufacturer Tripp Lite by Eaton

Description

The 45-meter (147-foot) N858-45M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers.With three female MTP/MPO connectors on each end, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). It's colored magenta for instant identification as an OM4 cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand.The 8-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings, walls and ducts.

Features

OM4-Rated for 40/100 Gb Ethernet Applications

  • Designed to extend high-density connections between network equipment in telecom rooms and data centers
  • Recommended for patching between data center MDFs and IDFs
  • Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks
  • Magenta-colored for identification as an OM4 cable

MTP/MPO Connectors with Push/Pull Tabs

  • 8-fiber female connectors 12 times denser than SC connectors
  • Push/pull tab connectors easy to install and remove with one hand
  • 100% tested for low insertion loss and back reflection

Error-Free Signal Transfer

  • 50/125 duplex glass fiber construction
  • Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts

Specifications

UNSPSC Code

26121607

Brand

Tripp Lite by Eaton

Category

Ethernet Cables

Call for price
