Tripp Lite by Eaton 4K HDMI Audio Extractor with TOSLINK, RCA and 3.5 mm Stereo Output, 7.1 Channel, 4K 60 Hz, HDR - Functions: Audio Extraction, Audio De-embedding - 3840 x 2160 - USB - Audio Line Out
Description
The P130-000-AUD4K6 extracts the audio track from the HDMI signal and sends it directly to an alternate digital or analog non-HDMI audio device. To power the unit, connect the included USB Micro-B cable between the P130-000-AUD4K6 and a USB port on the HDMI source or a USB charger.

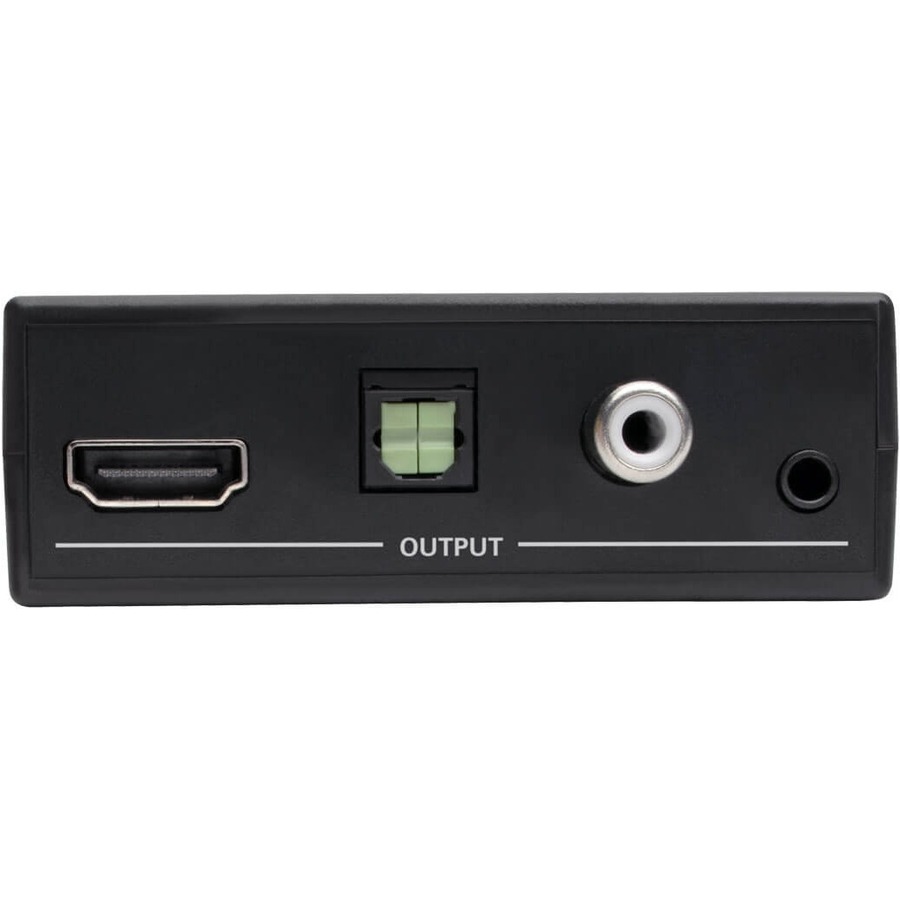

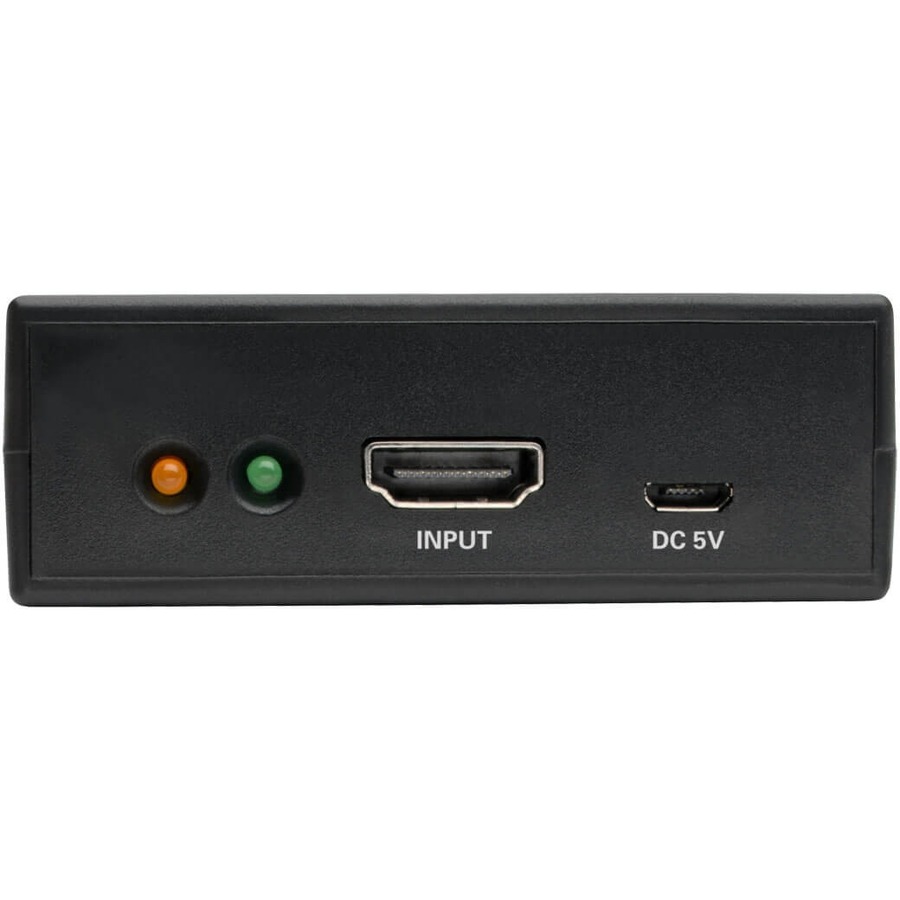

The compact HDMI audio de-embedder/extractor unit features 3.5 mm stereo, TOSLINK digital optical and RCA digital audio outputs to match most non-HDMI receivers and audio devices. It supports two-channel stereo and multi-channel audio up to 7.1 surround sound. It also supports uncompressed audio, such as LPCM, and compressed audio formats, including DTS and Dolby Digital. LEDs indicate when the unit is receiving power and transmitting an audio/video signal.
On the video side, the P130-000-AUD4K6 transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. It supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p and optional 3D formats up to 60 Hz. It complies with HDMI 2.0 and HDCP 2.2 specifications to conform to the latest equipment and encryption standards.
Specifications
UNSPSC Code
43211608
Audio Line Out
Yes
Brand
Tripp Lite by Eaton
Brand Name
Tripp Lite by Eaton
Category
Video Recorders
Country of Origin
Taiwan
Environmentally Friendly
Yes
Functions
Audio De-embedding
HDMI
Yes
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Maximum Resolution
3840 x 2160
Product Type
Signal Extractor
TAA Compliant
Yes
USB
Yes
