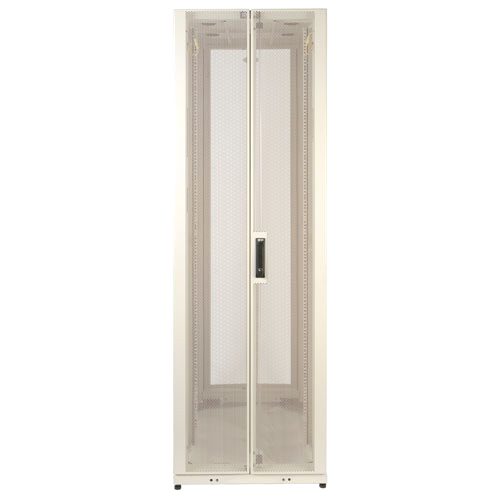

Tripp Lite by Eaton 42U SmartRack White Standard-Depth Rack Enclosure - side panels not included - 42U Rack Height x 19" Rack Width - White - 2250 lb Dynamic/Rolling Weight Capacity - 3000 lb Static/Stationary Weight Capacity
Description
The SR42UWEXP is an expansion model used when several cabinets are bayed together. It has doors and a roof but no side panels. Its integrated baying tabs make it easy to combine multiple enclosures in rows fro data center application. The SR42UWEXP is also compatible with hot aisle/cold aisle configurations.
The SR42UWEXP houses 3000lbs of standard 19-inch rack equipment in 42U. Offers vendor-neutral square hole/cage nut mounting for guaranteed compatibility with all EIA-310-E compliant 19" equipment. Its front and rear pairs of vertical rails are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of these adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
The top panel of the SR42UWEXP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR42UWEXP is open-bottom.
All components of the SR42UWEXP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.
To simplify deployment, the SR42UWEXP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
Specifications
24102001
No
Tripp Lite series
Tripp Lite series
Rack Equipment
White
China
43"
2250 lb
Restriction of Hazardous Substances (RoHS)
Yes
78.5"
5 Year
Eaton Corporation
SR42UWEXP
http://www.eaton.com/EatonCom/Markets/NorthAmerica
- 42U White SmartRack Premium Enclosure (No Side Panels Included)
- Keys
- Owners Manual
- 2 x Accessory Mounting Rails
- 50 x M6 Cage Nuts
- 50 x M6 Screws
- Stabilizing Brackets
White
SMARTRACK
SMARTRACK
SR42UWEXP
42U White SmartRack Premium Enclosure (No Side Panels Included)
Rack Cabinet
42U
19"
3000 lb
1
209 lb
23.6"
