Eaton Tripp Lite Series 28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, Hardwire 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA - Switched - Hardwired - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 380 V AC, 400 V AC, 415 V AC - 0U

Item Code: 5821663

Category PDUs

Manufacturer Tripp Lite by Eaton

Description

The PDU3XEVSRHWB 28.8kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

The 0U PDU features 30 switched 220/230/240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380/400/415V input connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.

Specifications

UNSPSC Code

39121017

Brand

Tripp Lite by Eaton

Brand Name

Tripp Lite by Eaton

Country of Origin

Taiwan

Depth

2.5"

Environmentally Friendly

Yes

Height

70"

Input Current

40 A

Input Voltage

400 V AC

Limited Warranty

2 Year

Management

Protocols:

IPv4
IPv6
HTTP
HTTPS
SMTP
SNMPv1
SNMPv2
SNMPv3
telnet
SSH
FTP
DHCP
NTP

Manufacturer

Tripp Lite by Eaton

Manufacturer Part Number

PDU3XEVSRHWB

Mount Type

Rack-mountable

Mounting Orientation

Vertical

Output Voltage

220 V AC

Package Contents

PDU3XEVSRHWB 30-Outlet PDU
Built-in LX Platform Interface
Configuration Cable
30 x Plug-lock Insert Sleeves
Rack-mounting Hardware
Mounting Bracket Accessory
Owner's Manual

PDU Type

Switched

Phase

Three Phase

Plug/Connector Type

Hardwired

Power Rating (Watt)

28.80 kW

Product Model

PDU3XEVSRHWB

Product Name

PDU3XEVSRHWB 30-Outlet PDU

Product Type

PDU

Protection Type

Overload Protection

Rack Height

Receptacle Detail

24 x IEC 60320 C13

Receptacle Type

IEC 60320 C13

TAA Compliant

Yes

Weight (approximate)

13.50 lb

Width

2.2"

Accessories

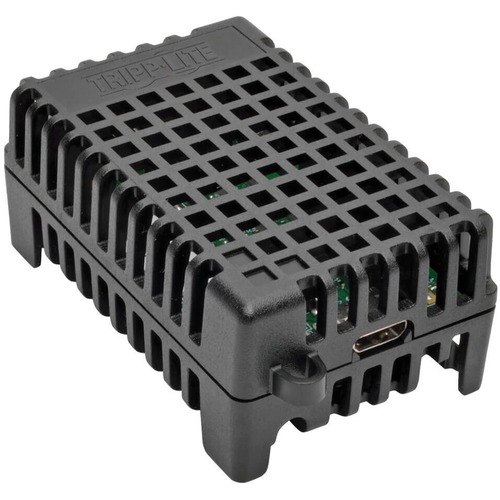

Eaton Tripp Lite Series EnviroSense2 (E2) Environmental Sensor Module with Temperature, Humidity and Digital Inputs, TAA - Black - TAA Compliant

Eaton Tripp Lite Series EnviroSense2 (E2) Environmental Sensor Module, Temperature, TAA - TAA Compliant

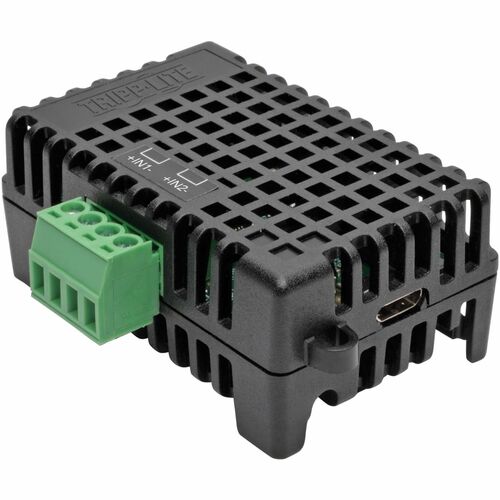

Eaton Tripp Lite Series EnviroSense2 (E2) Environmental Sensor Module with Temperature and Digital Outputs, TAA - TAA Compliant

Compare

Eaton Tripp Lite Series Plug-Lock Inserts (C20 power cord to C19 outlet), Blue, 100 pack

Compare

Eaton Tripp Lite Series Power Extension Cord/Splitter, 2 x C19 to C20 Y Splitter - Heavy-Duty, 20A, 250V, 12 AWG, 6 ft. (1.83 m), Black - 20A, 12AWG (2x IEC-320-C19 to IEC-320-C20) 6-ft."

Compare

Eaton Tripp Lite Series Heavy-Duty PDU Power Cord, C13 to C14 - 15A, 250V, 14 AWG, 6 ft. (1.83 m), Yellow Plugs - 15A, 14AWG (IEC-320-C14 to IEC-320-C13 with Yellow Plugs) 6-ft."
