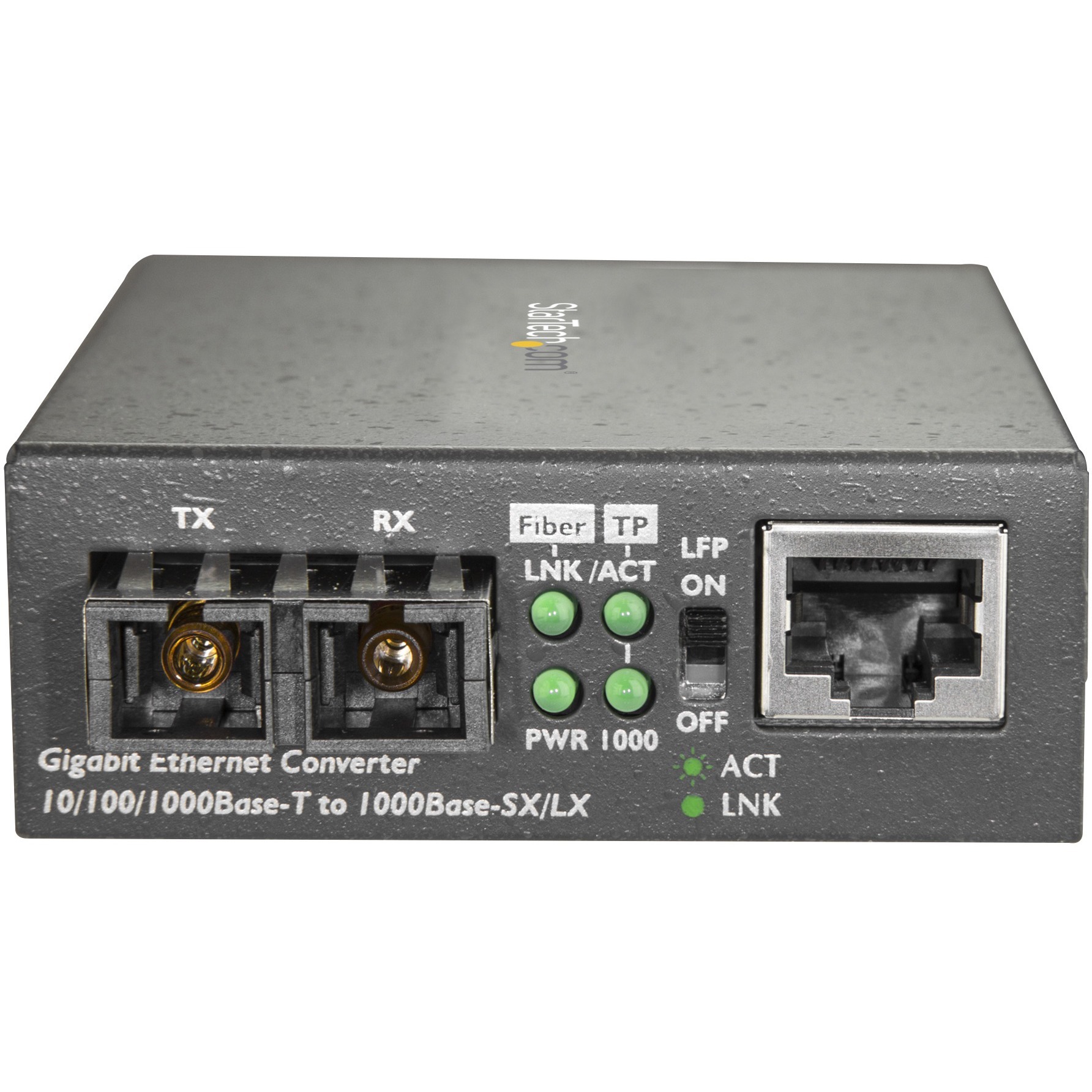

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 1000Base-T, 1000Base-SX, 1000Base-TX, 10Base-T - 0.55 km - AC A

Item Code: STCMCMGBSCMM055

Category Networking & Wi-Fi Accessories

Manufacturer StarTech.com

Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
Provides a cost-effective Ethernet to fiber/copper to fiber link
Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
Compact design and wall mountable
Non-blocking full wire-speed forwarding rate
Provides DIP switch supporting Link Fault Pass-through function

Additional-pdf1
Additional-pdf2

Description

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber, on 1000BASE-SXnetworks. Extend your GbE network cost-effectively The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation. Reliable and scalable network connectivity Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network. The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

Specifications

Lead Time

Ships in 6-10 Business Days

UNSPSC Code

43201553

Weight

1.22lb

Height

2.6in

Width

5.24in

Length

11.02in

Catalog Page Number

NEW

Brand

StarTech.com

Brand Name

StarTech.com

Category

Networking & Wi-Fi Accessories

Country of Origin

Taiwan

Depth

2.8"

End of Life Manual Availability

Yes

Environmental Certification

EU RoHS

Environmental Compliance

Restriction of Hazardous Substances (RoHS) 2

Environmentally Friendly

Yes

Ethernet Technology

Gigabit Ethernet

Fiber Mode Supported

Multi-mode

Fiber Optic Cable Wavelength

850 nm

Form Factor

Wall Mountable

Height

Limited Warranty

2 Year

Manufacturer

StarTech.com

Manufacturer Part Number

MCMGBSCMM055

Manufacturer Website Address

http://www.startech.com

Maximum Distance Supported

0.55 km

Media Type Supported

Twisted Pair

Network (RJ-45)

Yes

Network Technology

1000Base-T

Number of Network (RJ-45) Ports

Number of SC Ports

Package Contents

Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
1 x Universal power adapter (NA/JP, UK, EU, ANZ)
1 x Quick-start guide

Packaged Quantity

1 each

Plug/Connector Type

Type N

Power Consumption

10 W

Power Source

AC Adapter

Product Name

Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m

Product Type

Transceiver/Media Converter

REACH free of SVHC

Yes

SC Port Type

Duplex

TAA Compliant

Yes

Total Number of Ports

Weight (approximate)

7.10 oz

Width

3.8"
