Eaton Tripp Lite Series 2-Port DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K 60Hz UHD, DP1.2, TAA - 3840 × 2160 - DisplayPort - HDMI Out - USB - TAA Compliant
Description
The B156-002-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.

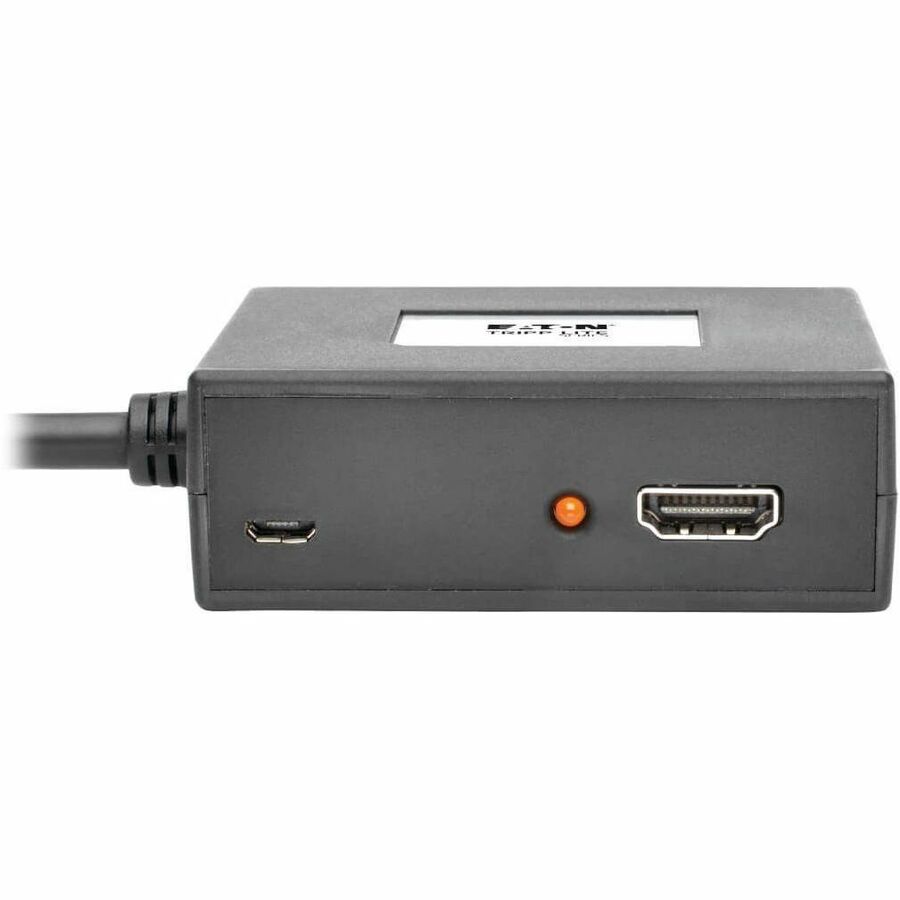

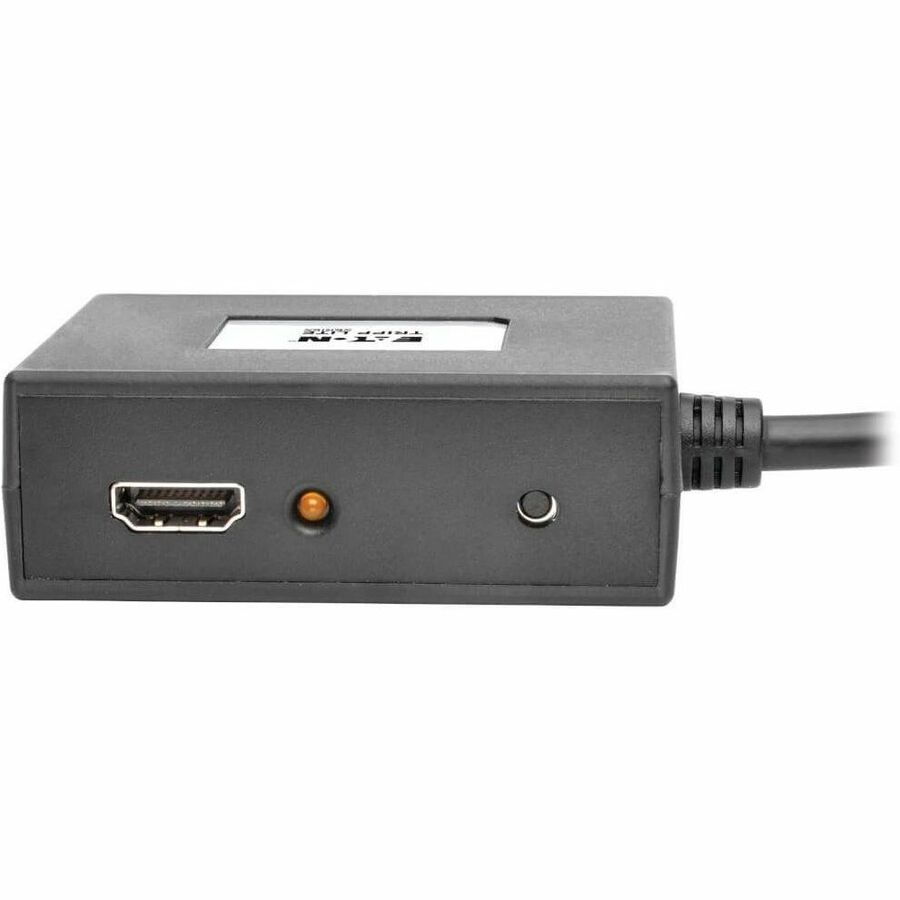

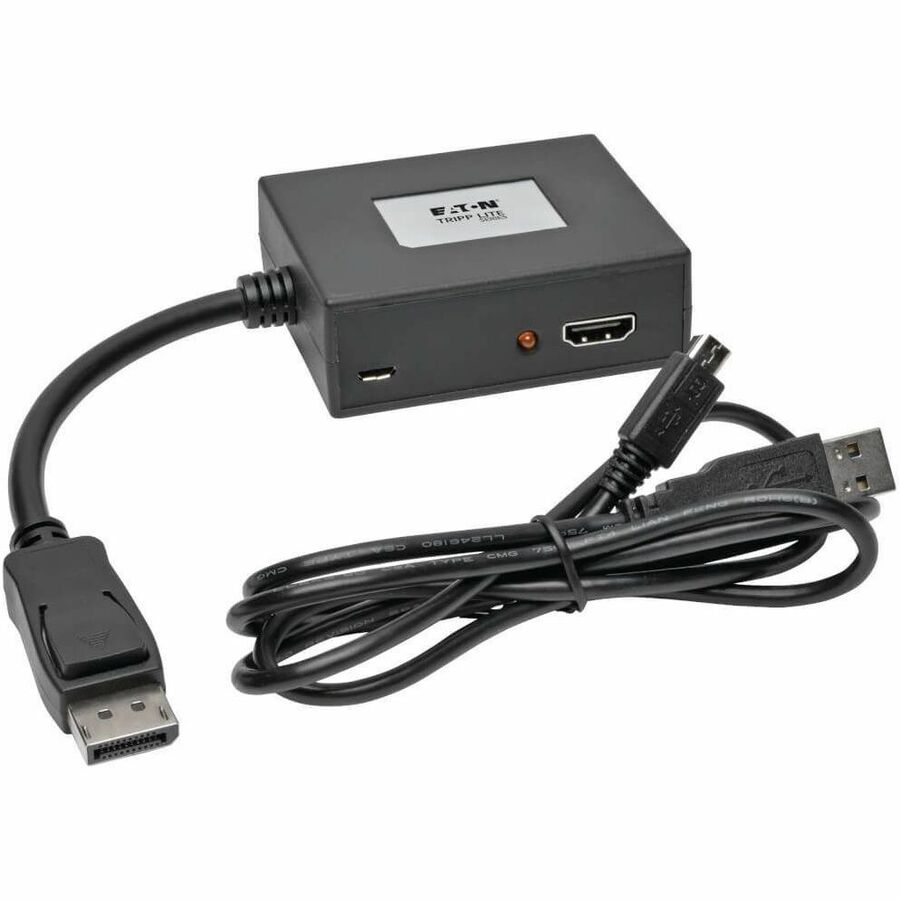

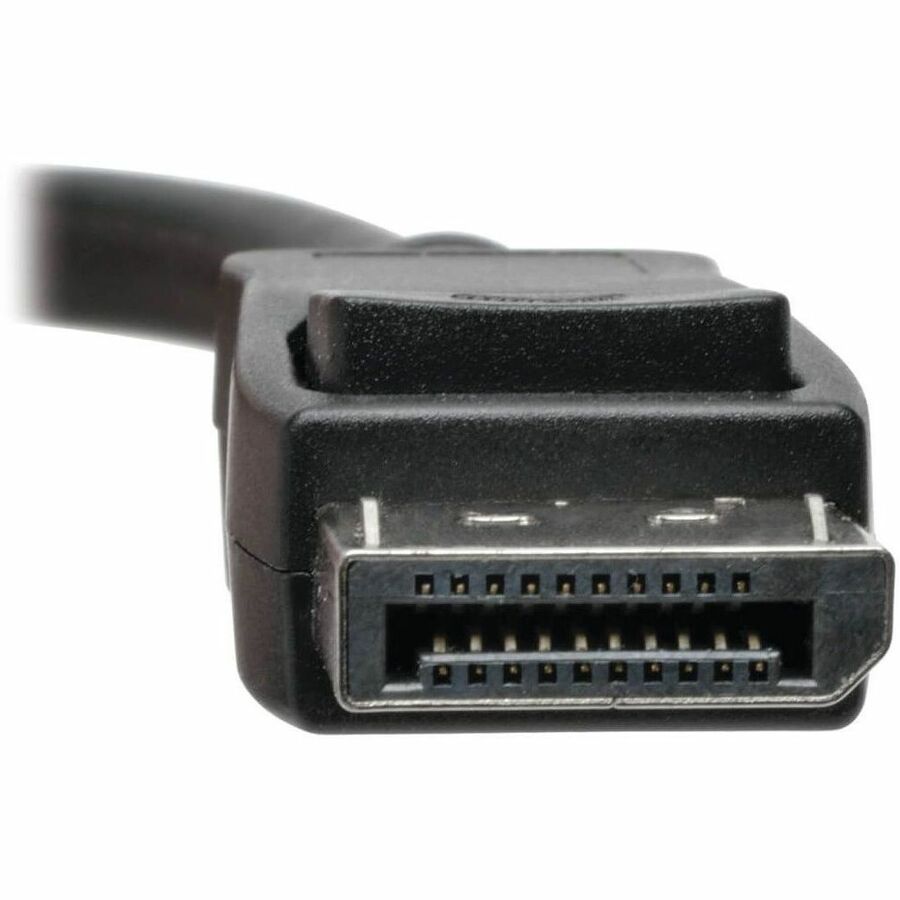

The B156-002-HD-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-002-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Specifications
UNSPSC Code
32101529
Brand
Tripp Lite by Eaton
Brand Name
Tripp Lite by Eaton
Category
Audio Cables
Country of Origin
Taiwan
Depth
2.4"
DisplayPort
Yes
Environmentally Friendly
Yes
HDMI Out
Yes
Height
1"
Limited Warranty
3 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B156-002-HD-V2
Number of DisplayPort Inputs
1
Number of HDMI Outputs
2
Package Contents
- B156-002-HD-V2 2-Port DisplayPort 1.2 to HDMI MST Hub
- USB Micro-B Cable, 3 ft.
- Owner's Manual
Product Model
B156-002-HD-V2
Product Name
B156-002-HD-V2 2-Port DisplayPort 1.2 to HDMI MST Hub
Product Type
Signal Splitter
TAA Compliant
Yes
USB
Yes
Weight (approximate)
3.20 oz
Width
3"
