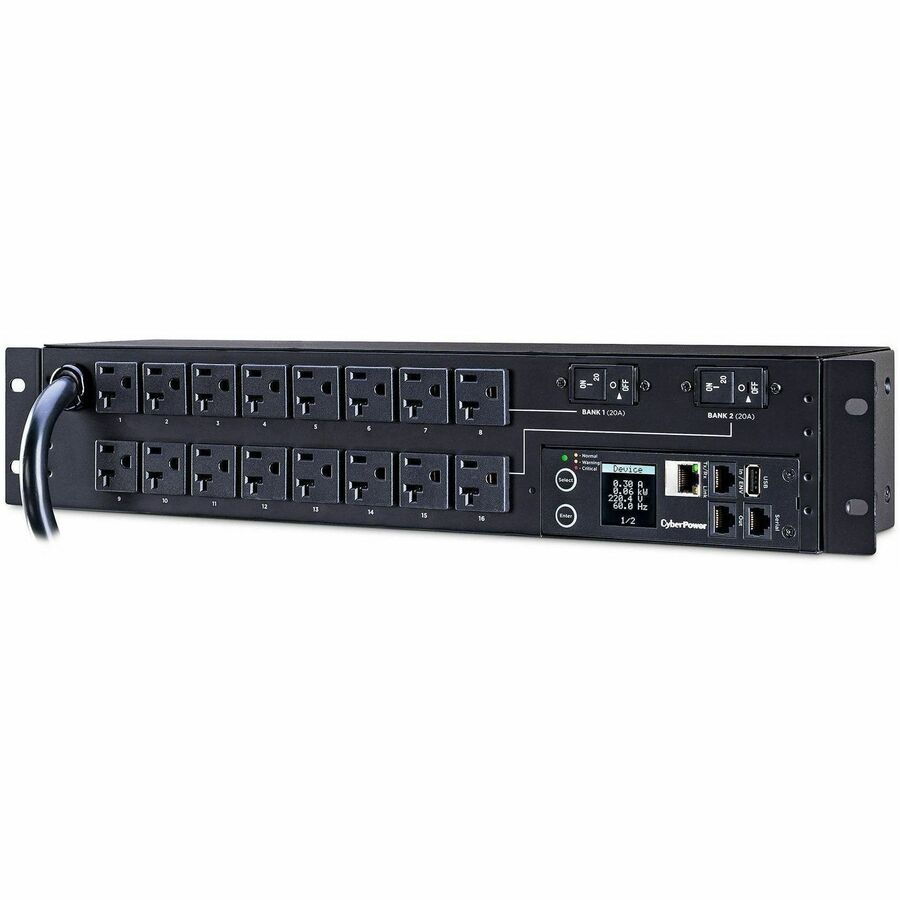

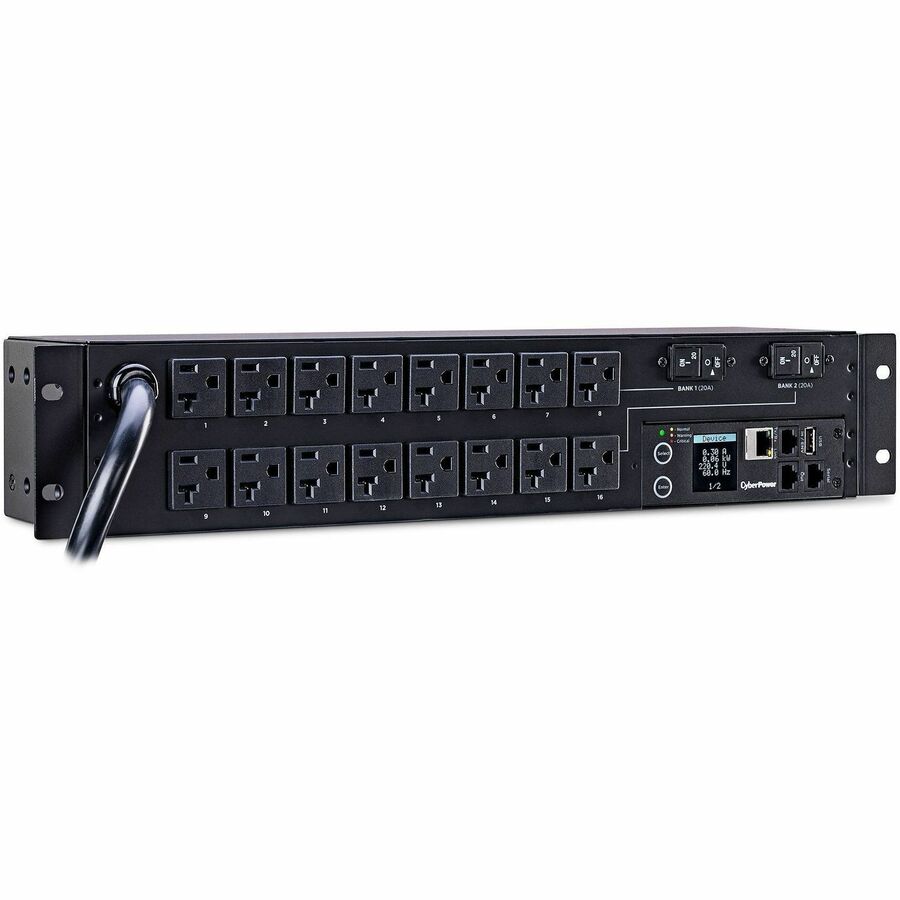

CyberPower PDU31003 100 - 120 VAC 30A Monitored PDU - 16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 2U, LCD, 3YR Warranty

Category PDUs
7450808 7450808
7450808 7450808
7450808 7450808
7450808 7450808
7450808 7450808
7450808 7450808
7450808 7450808
7450808 7450808
7450808 7450808

CyberPower PDU31003 100 - 120 VAC 30A Monitored PDU - 16 Outlets, 12 ft, NEMA L5-30P, Horizontal, 2U, LCD, 3YR Warranty

Item Code: 7450808
Category PDUs
Manufacturer CyberPower Systems, Inc
  • Automated notifications: E-mail, SMS, Text and SNMP Trap
  • Phase: Single
  • Amps: 30A (Derated to 24A)
  • Volts: 100-120Vac
  • Frequency: 50Hz/60Hz

Description

The CyberPower PDU31003, a 16-outlet (front), 2U rackmount monitored power distribution unit (PDU), provides 120V 30A output. PDU31003 distributes power to 16 NEMA 5-20R receptacles from a single twist lock NEMA L5-30P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.

Specifications

UNSPSC Code

39121017

Brand

CyberPower

Brand Name

CyberPower

Category

PDUs

Circuit Breaker

Yes

Color Family

Black

Cord Length

12 ft

Country of Origin

China

Depth

4.4"

Energy Star

No

Features

LCD Display

Form Factor

Rack

Height

3.5"

Input Current

30 A

Input Frequency

60 Hz

Input Voltage

120 V AC

Input Voltage Range

100 V AC - 120 V AC

Length

4.4"

Limited Warranty

3 Year

Longitud

4.4"

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU31003

Maximum Operating Temperature

113°F (45°C)

Maximum Storage Temperature

131°F (55°C)

Minimum Operating Temperature

32°F (0°C)

Minimum Storage Temperature

5°F (-15°C)

Mount Type

Rack-mountable

Mounting Orientation

Horizontal/Vertical

Network (RJ-45)

Yes

Output Voltage

120 V AC

Output Voltage Range

100 V AC - 120 V AC

PDU Type

Monitored

Plug/Connector Detail

1 x NEMA L5-30P

Plug/Connector Type

NEMA L5-30P

Product Color

Black

Product Family

Monitored PDU

Product Material

Metal

Product Model

PDU31003

Product Name

PDU31003

Product Series

Monitored PDU

Product Type

PDU

Protection Type

Overload Protection

Rack Height

2U

Receptacle Detail

16 x NEMA 5-20R

Receptacle Type

NEMA 5-20R

Remote Outlet Switching

No

UL Listed

Yes

Weight (approximate)

8.80 lb

Width

17.1"

Call for price
