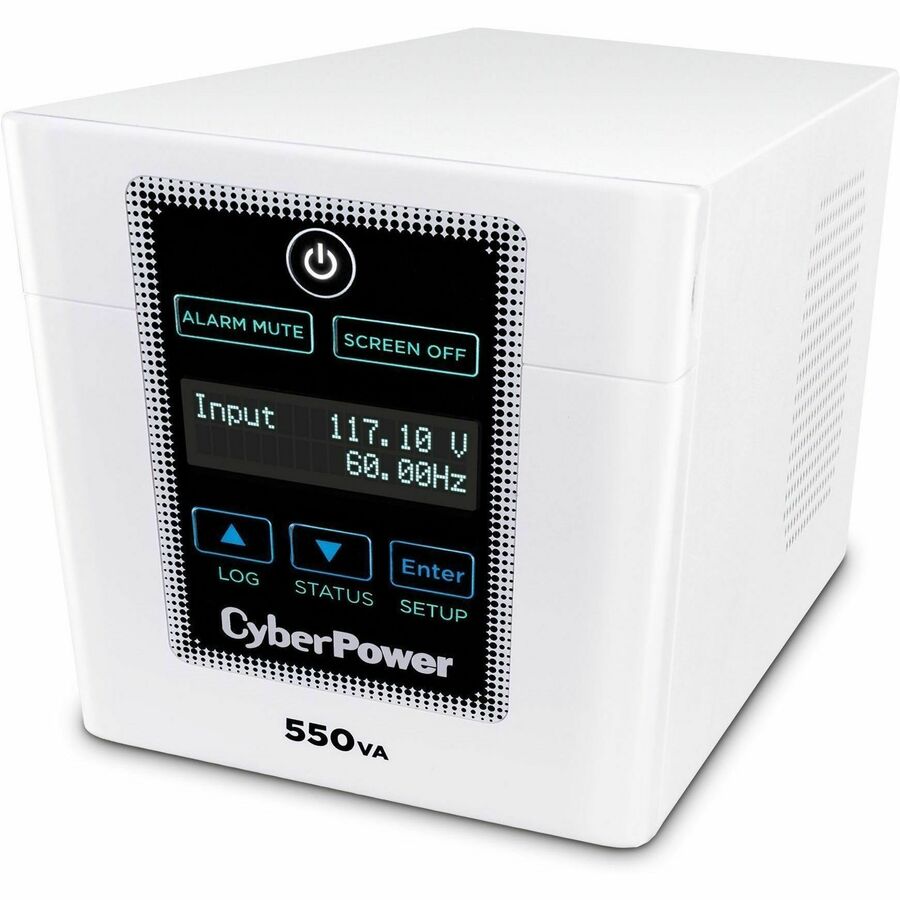

CyberPower M550L Medical UPS Systems - 550VA/440W, 120 VAC, NEMA 5-15P-HG, Mini-Tower, 4 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
- Capacity: 550VA / 440W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC

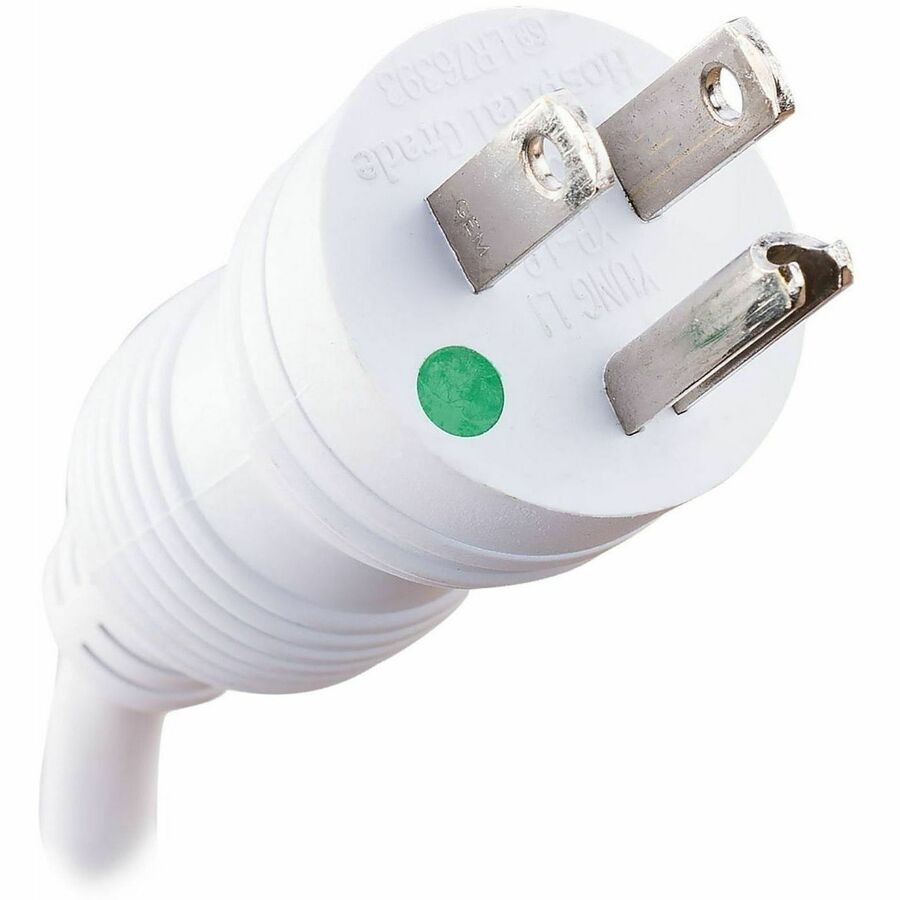

- Plug type & cord: NEMA 5-15P-HG, 6 ft. cord

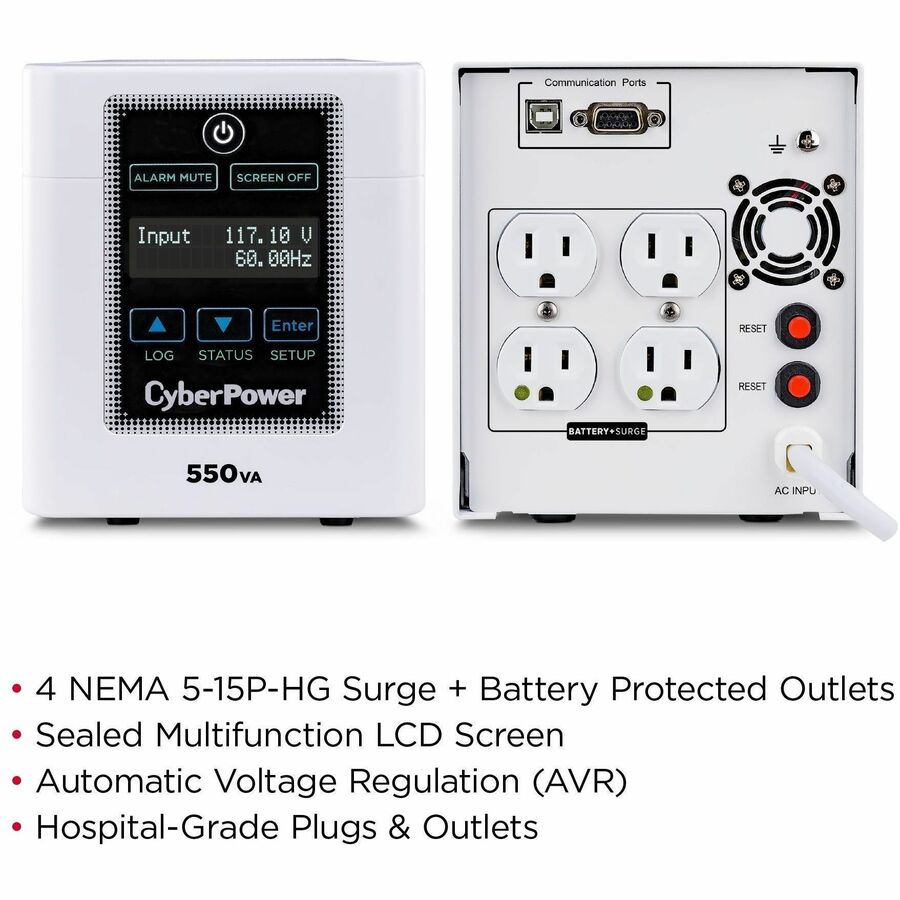

- Outlet types: 4 × NEMA 5-15R-HG
Description
Specifications
UNSPSC Code
39121011
Alarm
Battery Mode
Application/usage
Hospital
AVR
Yes
Backup/Run Time (Full Load)
8 Minute
Backup/Run Time (Half Load)
25 Minute
Battery Capacity
7000 mAh
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Battery Size
12V
Brand
CyberPower
Brand Name
CyberPower
Category
General Purpose UPS
Circuit Breaker
Yes
Color Family
White
Cord Length
6 Ft
Country of Origin
China

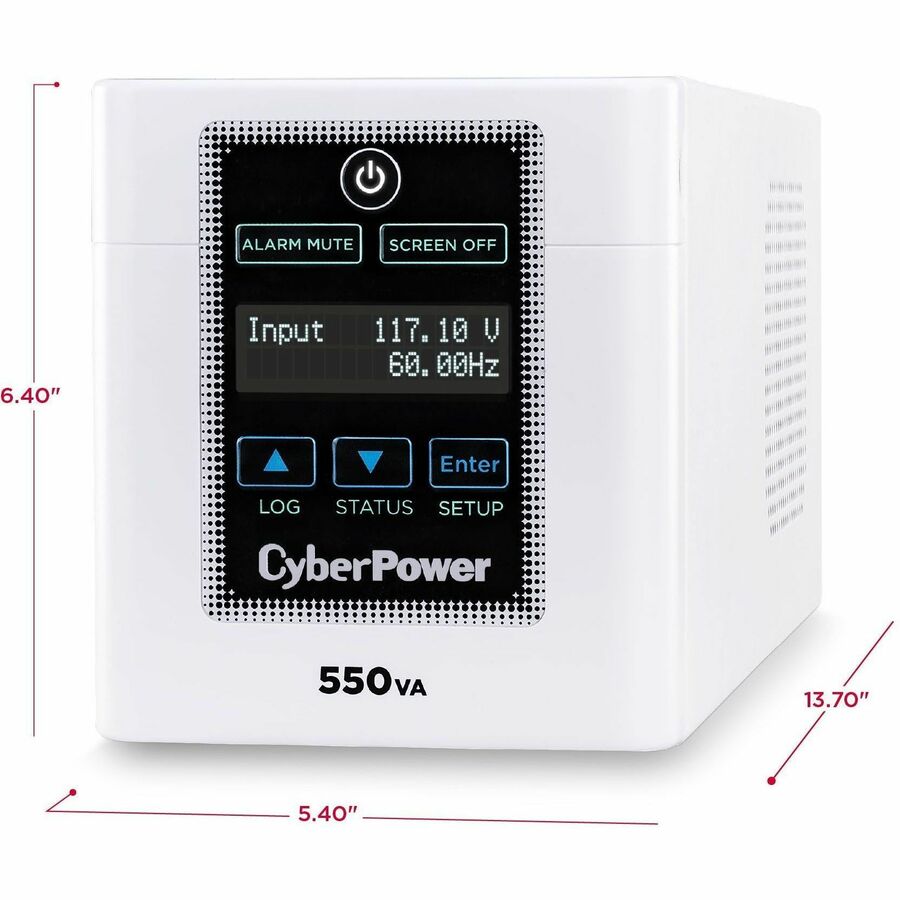

Depth
13.7"
Display
LCD
EMI/RFI Noise Filter
Yes
Energy Star
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Environmentally Friendly
Yes
Features
Audible Alarm
Form Factor
Mini-tower
Height
6.4"
Hot Swappable
Yes
Input Frequency
57 Hz
Input Voltage
120 V AC
Input Voltage Range
90 V AC - 146 V AC
Limited Warranty
3 Year
Load Capacity (VA)
550 VA
Load Capacity (Watt)
440 W
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
M550L
Maximum Operating Elevation
10000 ft
Maximum Operating Temperature
104°F (40°C)
Minimum Operating Temperature
32°F (0°C)
Number Of Batteries
2
Number of Battery & Surge Outlets
4
Output Frequency
60 Hz
Output Power Factor
0.8
Output Voltage
120 V AC
Overload Protection
Yes
Package Contents
- M550L Medical Grade 550VA/440W UPS
- User Manual
- USB A+B Type Cable
- Serial Cable
Plug/Connector Type
NEMA 5-15P-HG
Product Color
White
Product Family
Hospital/Medical Power
Product Model
M550L
Product Series
Hospital/Medical Power
Product Type
Line-interactive UPS
Receptacle Detail
4 x NEMA 5-15R-HG
Receptacle Type
NEMA 5-15R-HG
Replaceable Battery
Yes
Serial Port
Yes
Storage Temperature
5°F (-15°C) - 113°F (45°C)
Surge Energy Rating
1445 J
Transfer Time
10 ms
Typical Battery Recharge Time
8 Hour
USB
Yes
USB (HID Compliant) Port
Yes
Waveform Type
Simulated Sine Wave
Width
5.4"
