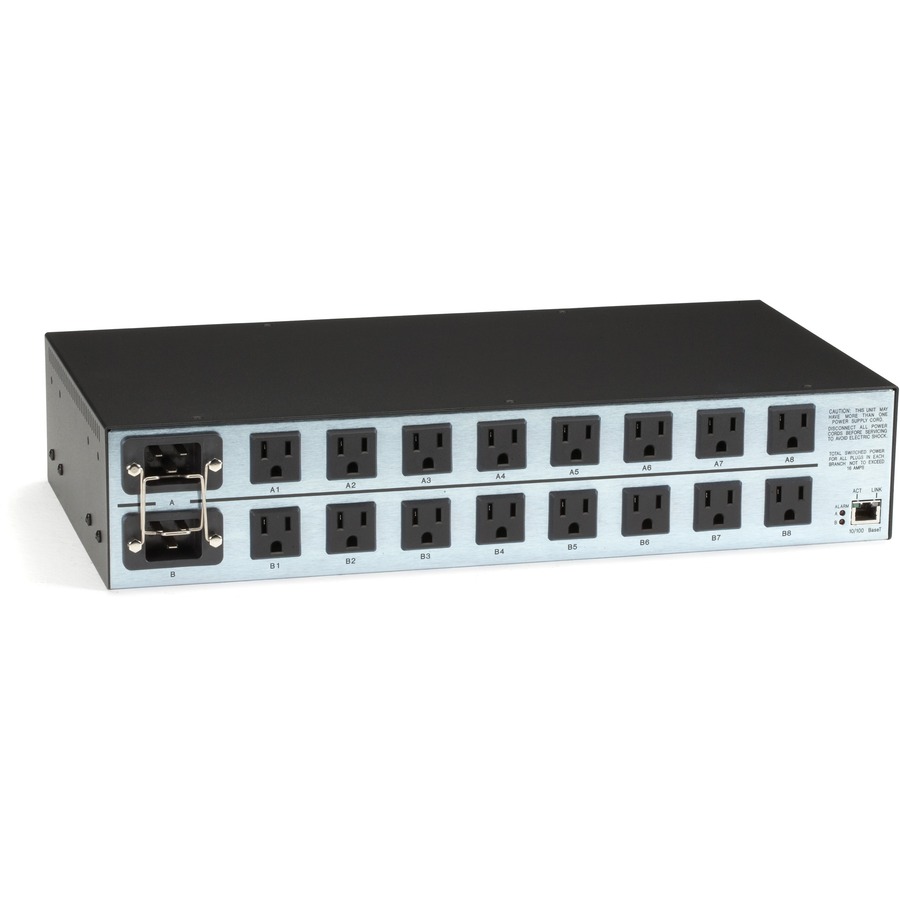

Black Box Horizontal Rackmount Remote Power Manager - 100?120-VAC, Dual-Circuit, 15-Amp, (16) NEMA 5-15 Outlet - IEC 60320 C20 - 16 x NEMA 5-15R - 120 V AC - Network (RJ-45) - 8 ft Cord Length - 2U - Horizontal - Rack-mountable
Description
- Horizontal configuration.
- Control devices using a Web browser and a modem, or serial commands.
- Features individually controllable outlet plugs.
- Two levels of password protection and encrypted 64-bit password security.
- Only authorized users can make configuration changes.
- An RS-232 port is for modem or console connections. A 10BASE-T interface provides network connections.
- Takes up only 2U of space.
- Dual power circuits.
A BLACK BOX Rackmount Remote Power Manager enables you to reboot up 16 network devices from across your network, by modem, or from the Internet.
No more traveling to reboot your equipment in the middle of the night! No more service calls just to flip a switch! BLACK BOX Rackmount Remote Power Managers enable you to reboot up to 16 network devices from across your network, by modem, with Telnet, or even from the Internet.
Just type the power manager's IP address into your Web browser, enter your name and password, and you can access your network devices to switch them on, switch them off, or reboot. The power managers are perfect for remotely rebooting servers, routers, network switches, Webcams, firewalls, and many other network devices.
The Web browser interface works across any TCP/IP network - even the Internet - with any JavaScript-enabled Web browser. Its intuitive interface features easy-to-use menus. Control power by plug number or by name (such as ATM Switch 1, Gateway, Router 1, etc.) that you assign to each outlet.
You can also operate the Horizontal Rackmount Remote Power Manager through an ASCII command-line interface via Telnet over a TCP/IP network, through a modem connection, or from a local PC using a terminal emulator.
Horizontal Rackmount Remote Power Managers have built-in password security to prevent unauthorized users from switching your devices or changing your configuration. Both the Web browser and the command-line interface use 64-bit encryption.
Two levels of operational passwords provide an additional layer of security: System-level passwords provide access to all configuration and switching functions. The user-level limits switching to assigned plugs and cannot be used to change the power manager configuration.
Horizontal Rackmount Remote Power Managers feature an IP-addressed 10BASE-T interface for network connections and an RS-232 port for modem or console connections.
Specifications
39121017
Black Box
Black Box
TAA
Yes
8 ft
United States
8.7"
Yes
3.5"
15 A
120 V AC
5 Year
- HTTP
- Telnet
- RS-232
- Ethernet
Black Box Corporation
PS569A-R2
http://www.blackbox.com
Rack-mountable
Horizontal
Yes
2
2 x IEC 60320 C20
IEC 60320 C20
New
16-Outlet PDU
PDU
2U
16 x NEMA 5-15R
NEMA 5-15R
14.11 lb
19"
