AddOn

AddOn 25W POE Power Injector (IEEE802.3at 48v 25W max, 10/100Base-T) - 120 V AC Input - 48 V DC, 540 mA Output - RJ-45 Input Port(s) - RJ-45 Output Port(s) - 25 W

Item Code: 575742

Category Power Injectors/Splitters

Manufacturer AddOn

Description

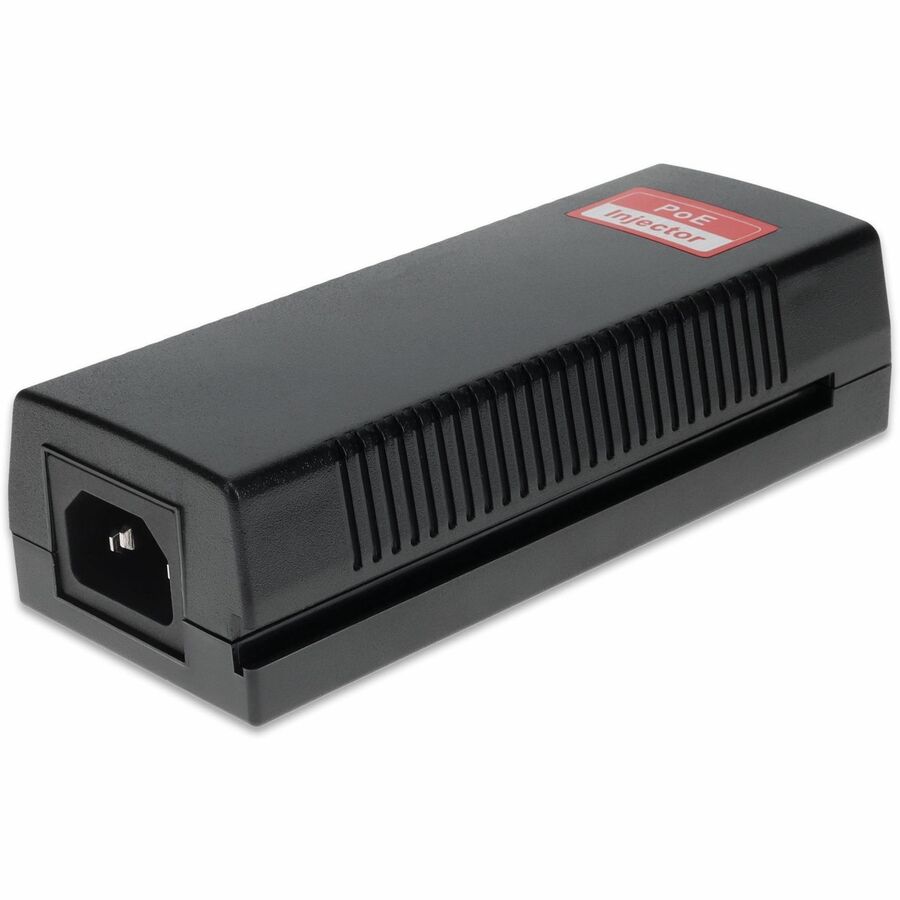

This is a single port Power-over-Ethernet (POE) 10/100Base-T Injector. This device helps eliminate the need for a POE enabled equipment switch, and add POE items such as wireless LAN, Bluetooth Access Points, and many IP function devices. The injector is typically installed near the Ethernet hub and connected to a remote POE device through a single Ethernet Cat 5e, Cat6, or Cat6a cable. The injector can support an advanced 802.3at or nonstandard (optional) compliant device which support the standard POE pin out. This AC/DC powered POE Injector is a power sourcing equipment (PSE), which combines data transferred over a fiber optic link with 48V power supply, providing power to IEEE802.3at powered device (PD) over CAT5e, Cat6, and Cat6a UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3at standard. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.

Specifications

UNSPSC Code

39121004

Brand

AddOn

Brand Name

AddOn

AddOn 25W POE Power Injector (IEEE802.3at 48v 25W max, 10/100Base-T) - 120 V AC Input - 48 V DC, 540 mA Output - RJ-45 Input Port(s) - RJ-45 Output Port(s) - 25 W
